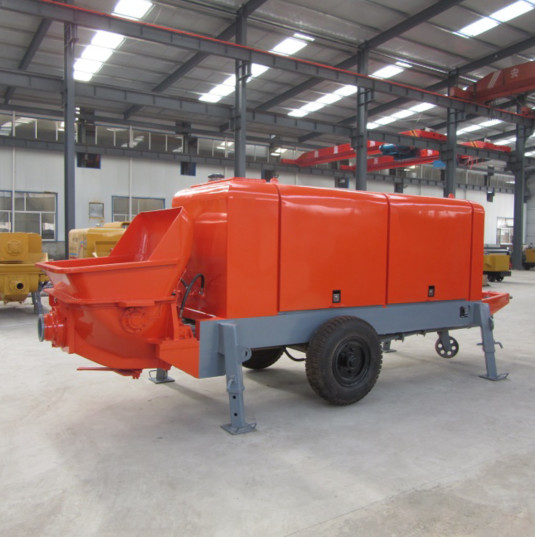

Diesel 270m 50m3/H Electric Trailer Concrete Pumps

Product Categories

BILON HEAVY INDUSTRY (GUANGZHOU) CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Diesel 270m 50m3H Electric Trailer Concrete Pumps
Brand: Bilon
Price: 1 USD

Brand Name : Bilon

Certification : ISO,CCC,BV

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 1000 sets

Delivery Time : 30 days

Packaging Details : naked,waxing. concrete mixer truck is shipped by bulk,

Weight : 6200kg

Power Type : Diesel

Dimension(L*W*H) : 7125*1980*2300

Productivity : 80m3/h

Max. horizontal conveying distance : 1200m

Max. vertical conveying distance : 270m

Contact Now

Hot Selling 50m3/h Electric Trailer Concrete Pumps for Sale

High quality trailer concrete pumps equipped with high efficiency concrete pumping system.
Hydraulic double-cylinder piston system, more stable flow, more uniform and stable spraying.
Dual-piston alternately working, manual and automatic hydraulic synchronous lubrication system, longer mortar piston life.
Further optimized pumping flow path to reduce the pumping resistance and the probability of tube block.
Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.
Advanced hydraulic system.
Adaptive gear adjustment technology, smart matching of operating conditions, easy and flexible for any construction occasion.
High pressure large displacement system, pumping displacement is up to 8m3/h
Electronically controlled reversing technology, fast and soft commutation, good pumping continuity.
High reliability and wear resistance components, imported brand main hydraulic components.
SYMC intelligent controller, high-speed and reliable operation.
Phase sequence automatic detection, more reliable to start.
Wireless remote control makes operation more convenient.
Redundant control design, more reliable control.
Easy to operate.
Flexible to move.
Longer serve life.
Competitive factory price.

Item	80-16-110
Max Theoretical Concrete Output (m³/h)	50/85
Max Concrete outlet Pressure (Mpa)	16
Concrete slump (mm)	100-200
Aggregate Size (mm)	gravel≤40 Pebble 50
Powder (KW)	110
Distribution valve	S valve
Conveying Cylinder Diameter (mm)	140/1800
Concrete Cylinder Diameter (mm)	200/1800
Hopper Capacity (m³)	0.5
Hydraulic oil Tank Capacity (L)	200
Filling Height (mm)	1400
Max Conveying Distance (vertical Height/Horizontal Distance) (m)	270/1200
Pumping working pressure(Mpa)	30
Hopper mixing working pressure(Mpa)	14
Pipe Cleaning Mode	Washing
Overall Dimension (mm)	7125×1980×2300
Total Weight (kg)	6200

Diesel 270m 50m3/H Electric Trailer Concrete Pumps
