Multi functional Road Construction Machinery 76KW Wheel Loader

Name: Multi functional Road Construction Machinery 76KW Wheel Loader
Brand: Bilon
Price: 1 USD

Brand Name : Bilon

Certification : CE

Place of Origin : China

MOQ : 1-10 pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 3000pcs in a month

Delivery Time : 15 days

Packaging Details : Carton or wooden package

Dimension(Long * Breadth * High) : 5600*1800*2700mm

Rated Load : 1800kg

Engine : YN490 turbo

dumping height : 3200mm

Power : 76KW

gearbox : 265

Contact Now

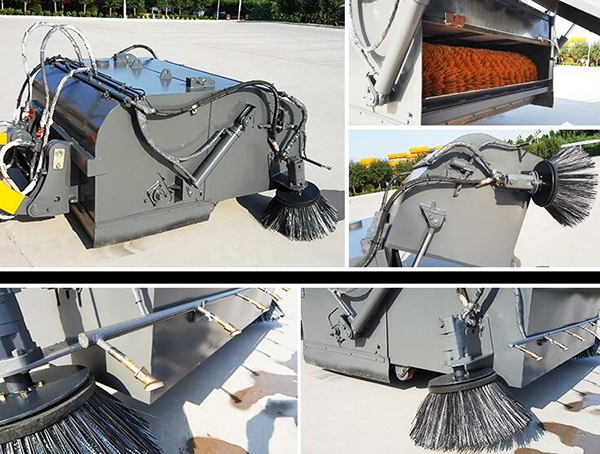

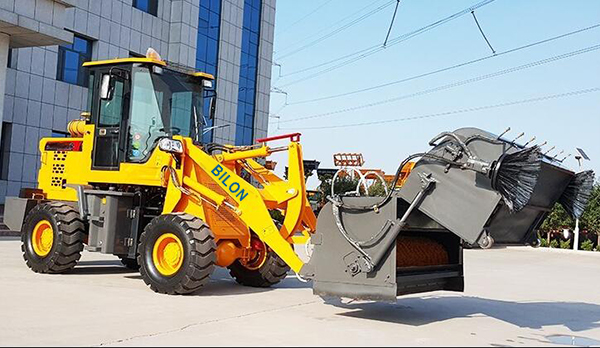

76KW New Multifunctional Sweeper Loader Sweeping Machine Cleaning Machine On The Road

1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using small hub reduction axle, with strong ability to overcome obstacle
3. Using the central articulated frame and load-sensing hydraulic steering gear, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
6. hydraulic transmission , can make it much easier for operation

7. Using four -wheel -drive,low wide-based off-road tires
8. air over hydraulic disc brake on 4 wheels

Performance	Rated load	1800kg
	Overall weight	4700kg
	Rated bucket capacity	0.75m3
	Maximum tractive force	47KN
	Maximum breakout force	≥48KN
	Maximum grade ability	35℃
	Maximum dump height	3200mm
	Maximum dump reach	900m
	Overall dimension (LWH)	5600×1800×2700mm
	Minimum turning radius	3400mm
Engine	Model	YN490 turbo
	Type	In-line,arrangement,water cooling, four-stroke
	No. of cylinder-bore/stroke	4-102×115mm
	Rated power	76kw--2400r/min
	Maximum torque	265-280N.m
	Min fuel-consume ratio	≤225g/kw.h
Transmission system	Torque converter	265
	Gearbox mode	Power shift normally engaged straight gear
	Gear shift	2 forward shift 2reverse shift
	Maximum speed	25km/h
Drive axles	model	small hub reduction axle
	Decelerating mode	planetary reduction,grade 1
	Wheel base (mm)	2450mm
	Wheel tread	1590mm
	Minimum ground clearance	300mm

Multi functional Road Construction Machinery 76KW Wheel Loader

Product Tags:

road construction vehicles

construction paver machine

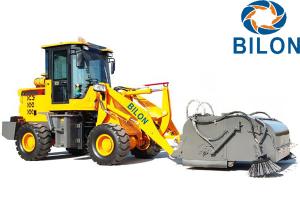

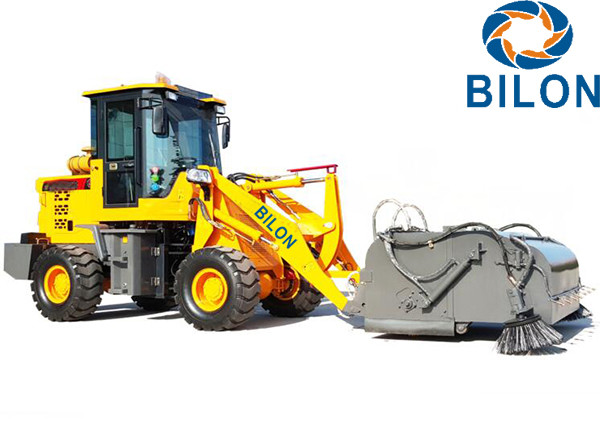

Multi functional Road Construction Machinery 76KW Wheel Loader Images
